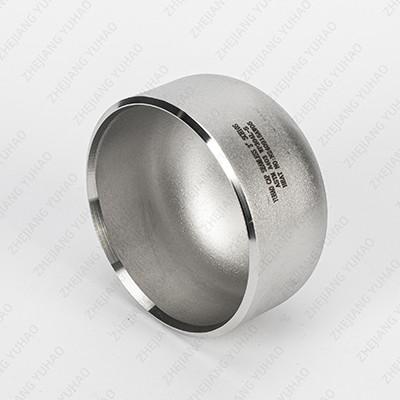

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps

Zhejiang Yuhao Stainless Steel Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps

Brand Name : YUHAO

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

End Type : Beveled

Wall Thickness : SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160

Standard : ASTM A403, ASTM A815, ASTM A234

Surface Finish : Polished, Rolled Sand, Pickling

Material : 304 304L 316 316L

Pipe Fitting Type : Cap

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment

Dimensions : DN5-DN1200

Size : 1/2' ~ 48'

Usage : Pipeline Connection

Contact Now

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps



►Products Description

Our stainless steel butt welded end caps provide reliable termination solutions for high-performance piping systems. Precision-manufactured from premium 304/316/316L stainless steel, these components deliver:

  • ​​Secure System Closure:​​ Perfectly seals pipe ends to prevent contamination and leakage
  • ​​Exceptional Durability:​​ Superior corrosion and pressure resistance for demanding applications
  • ​​Precision Engineering:​​ Strict compliance with ASME B16.9, ANSI B16.25 standards
  • ​​Seamless Integration:​​ Perfectly matched butt weld ends for easy installation
  • ​​Versatile Applications:​​ Ideal for chemical processing, oil & gas, power generation, and water treatment systems


Advanced Production Capabilities:​​

  • State-of-the-art CNC forming technology
  • Automated orbital welding systems
  • Full-range pressure testing facilities


Rigorous Quality Assurance:​​

  • 100% material traceability with certified MTC
  • Precise dimensional verification
  • Optional NDT testing (RT/UT/PT) available


​​Inventory & Supply Advantages:​​
Our extensive stock ensures immediate availability:

  • Comprehensive Size Range:​​ 1/2" to 36" standard sizes ready to ship
  • Full Schedule Coverage:​​ SCH 10S through SCH 160
  • Custom Solutions:​​ Special sizes, materials, and finishes available


Our stainless steel butt welded end caps offer the perfect combination of quality, reliability, and performance for your critical piping systems. Contact our sales team today for immediate quotations and expert technical consultation.


►Industry-specific attributes

Place of Origin China
Brand name Yuhao
Connectivity Welding
Size DN15-DN2400(1/2"-48")
Wall thickness SCH 5s-SCH XXS
customized Support ASTM DIN EN BS JIS GOST etc.
Surface treatment Sand blasting, Roll blasting, Pickled or Polished
Material 304 304L 316 316L
Pressure High Pressure
Packing Cartons, Pallet, Cases


►Product Size

DN NPS OD Nominal Wall Thickness
Schss Sch10S Sch405 Sch8os Sch10 Sch20 Sch30 STD Sch40 Sch60 XS
6 1/8 10.3 - 1.24 1.73 2.41 - - - 1.73 1.73 - 2.41
8 1/4 13.7
1.65 2.24 3.02 - - - 2.24 2.24 - 3.02
10 3/8 17.1 - 1.65 2.31 3.2 - - - 2.31 2.31 - 3.2
15 1/2 21.3 1.65 2.11 2.77 3.73 - - - 2.77 2.77 - 3.73
20 3/4 26.7 1.65 2.11 2.87 3.91 - - - 2.87 2.87 - 3.91
25 1 33.4 1.65 2.77 3.38 4.55 - - - 3.38 3.38 - 4.55
32 1 1/4 42.2 1.65 2.77 3.56 4.85 - - - 3.56 3.56 - 4.85
40 1 1/2 48.3 1.65 2.77 3.68 5.08 - - - 3.68 3.68 - 5.08
50 2 60.3 1.65 2.77 3.91 5.54 - - - 3.91 3.91 - 5.54
65 2 1/2 73 2.11 3.05 5.16 7.01 - - - 5.16 5.16 - 7.01
80 3 88.9 2.11 3.05 5.49 7.62 - - - 5.49 5.49 - 7.62
90 3 1/2 101.6 2.11 3.05 5.74 8.08 - - - 5.74 5.74 - 8.08
100 4 114.3 2.11 3.05 6.02 8.56 - - - 6.02 6.02 - 8.56
125 5 141.3 2.77 3.4 6.55 9.53 - - - 6.55 6.55 - 9.53
150 6 168.3 2.77 3.4 7.11 10.97 - - - 7.11 7.11 - 10.97
200 8 219.1 2.77 3.76 8.18 12.7 - 6.35 7.04 8.18 8.18 10.31 12.7
250 10 273 3.4 4.19 9.27 12.7 - 6.35 7.8 9.27 9.27 12.7 12.7
300 12 323.8 3.96 4.57 9.53 12.7 - 6.35 8.38 9.53 10.31 14.27 12.7
350 14 355.6 3.96 4.78 - - 6.35 7.92 9.53 9.53 11.13 15.09 12.7
400 16 406.4 4.19 4.78 -
6.35 7.92 9.53 9.53 12.7 16.66 12.7
450 18 457 4.19 4.78 - - 6.35 7.92 11.13 9.53 14.27 19.05 12.7
500 20 508 4.78 5.54 - - 6.35 9.53 12.7 9.53 15.09 20.62 12.7


Shot Shoot

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps

Asme B16.9 A234 Stainless Steel 304 316l 904 Butt Welded Seamless Pipe End Caps


►FAQ

Q1: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q2:Delivery time?

A:1- 7 days for small order.10- 20 days for big order.

Q3: Can I customize products?

A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
